ODCS

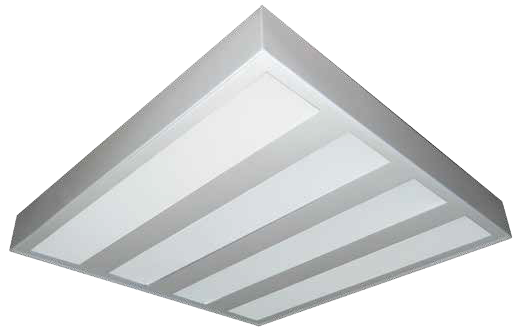

620x620mm Recessed modular fitting made of trimmed sheet steel , powder coated to corrosion class II, with
separated micro embossing 3-layer LED diffusers.

Categories: ,

Description

Body

In trimmed sheet steel, chemically treated surface to corrosion class II by high pressure spraying at 2.5 bar before its finally electro-statically powder coated with a 60 micron thermo-hardened polyurethane powder, stabilized and UV protected.

Optics

Made of high temperature UV stabilized PMMA 3-layer material. Excellent optical characteristics with high transmission, diffusion rate, special micro embossing, and free static treatment.

Electrical

240v/50Hz supply, 105o heat resistant PVC wire, 3-P terminal block in polyamide material.

Options

Different dimensions, lumens output, wattages, extruded aluminum housing and other variants are available upon request.
